MiniBeast™ Auto


  • 10-35mm Core Drilling
  • Counterskin-30
  • Twist Drill 12mm

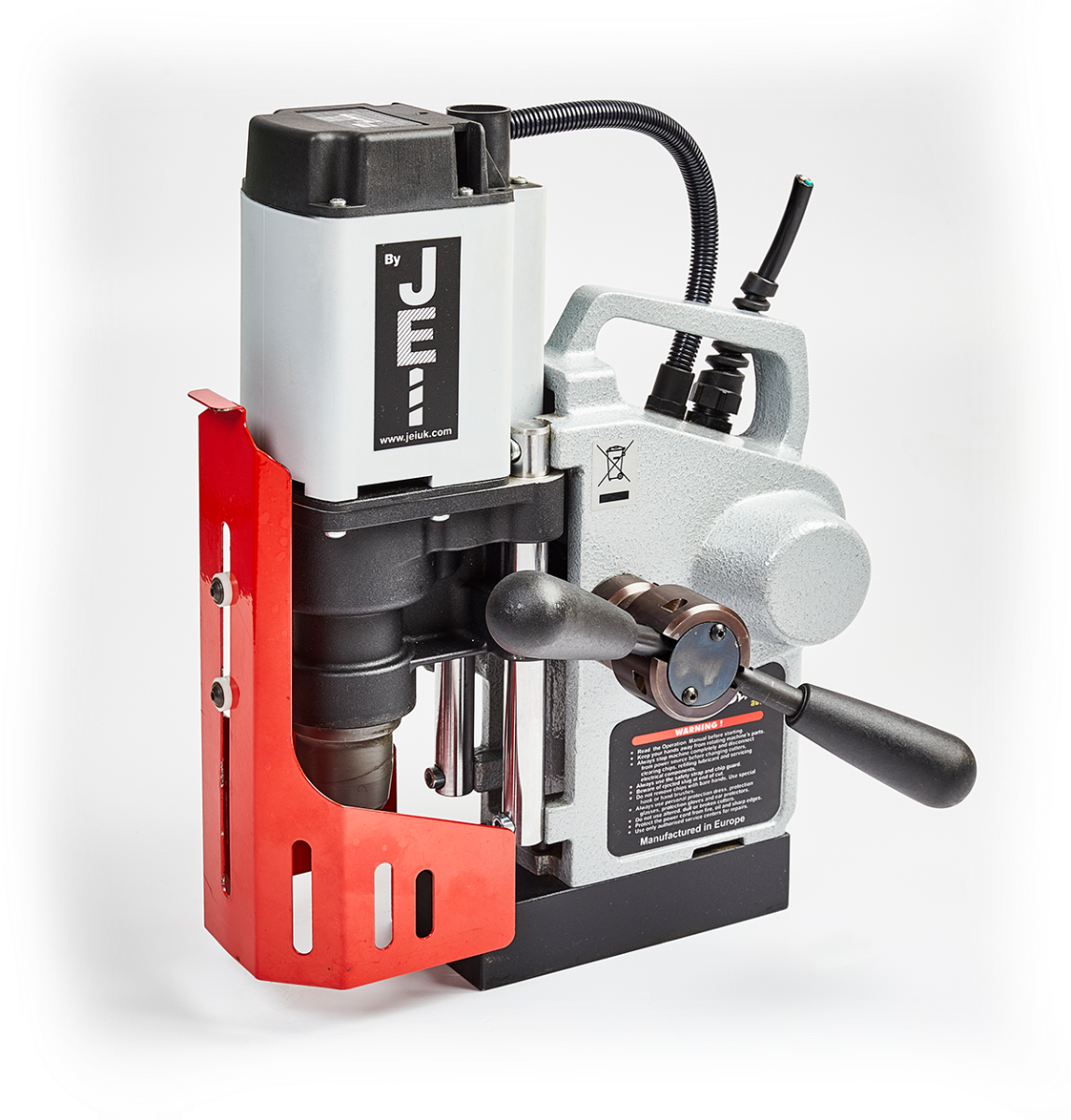

The world's smallest Automatic Magnetic Drilling Machine with all the Features of the MiniBeast™.

  • Compact size and weight - ideal for site work.

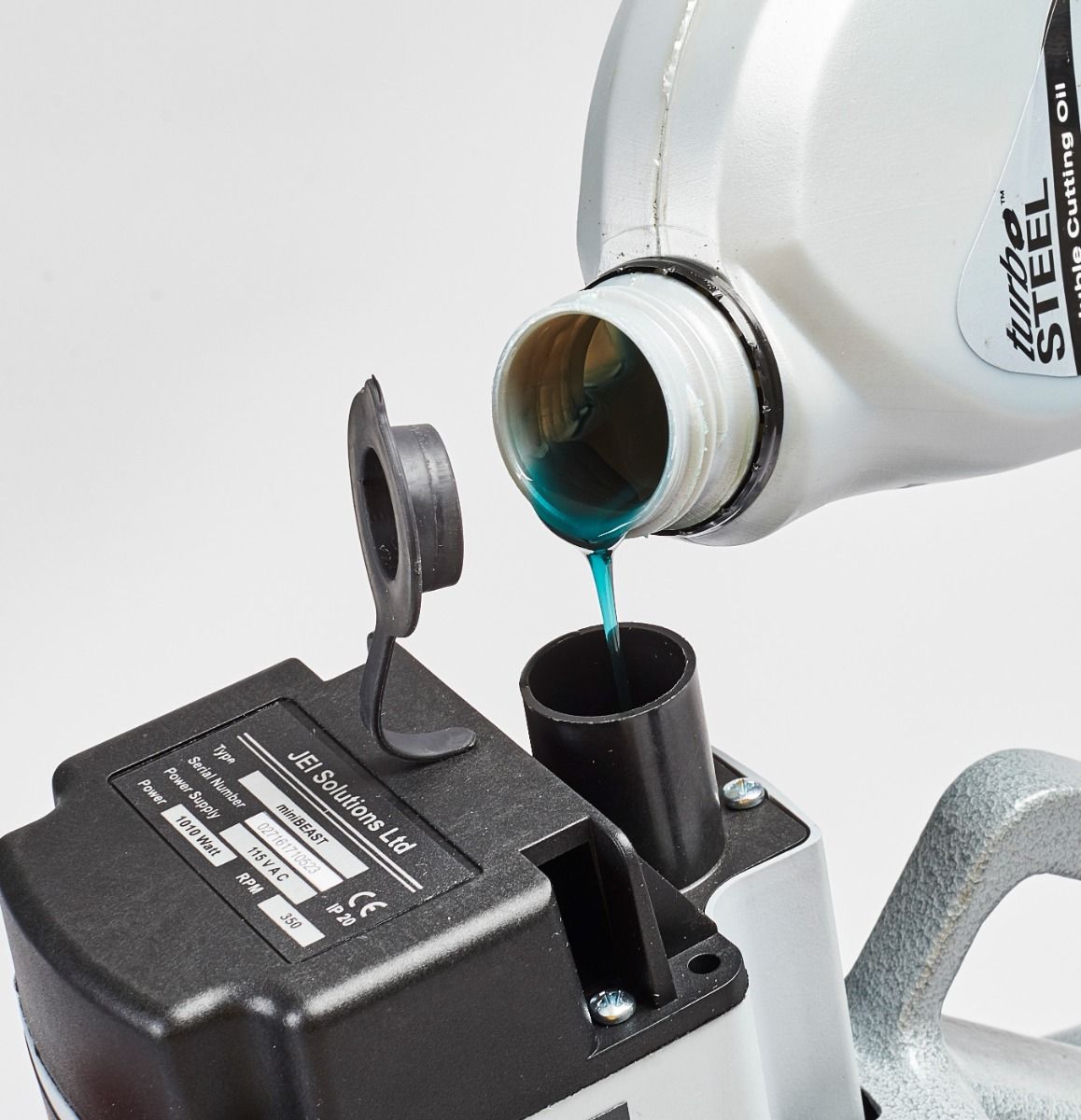

  • Internal coolant reservoir - ensuring maximum cutter life.
  • Self correcting slide rails - for maintenance free operation.
  • Lightweight - only 13kg.

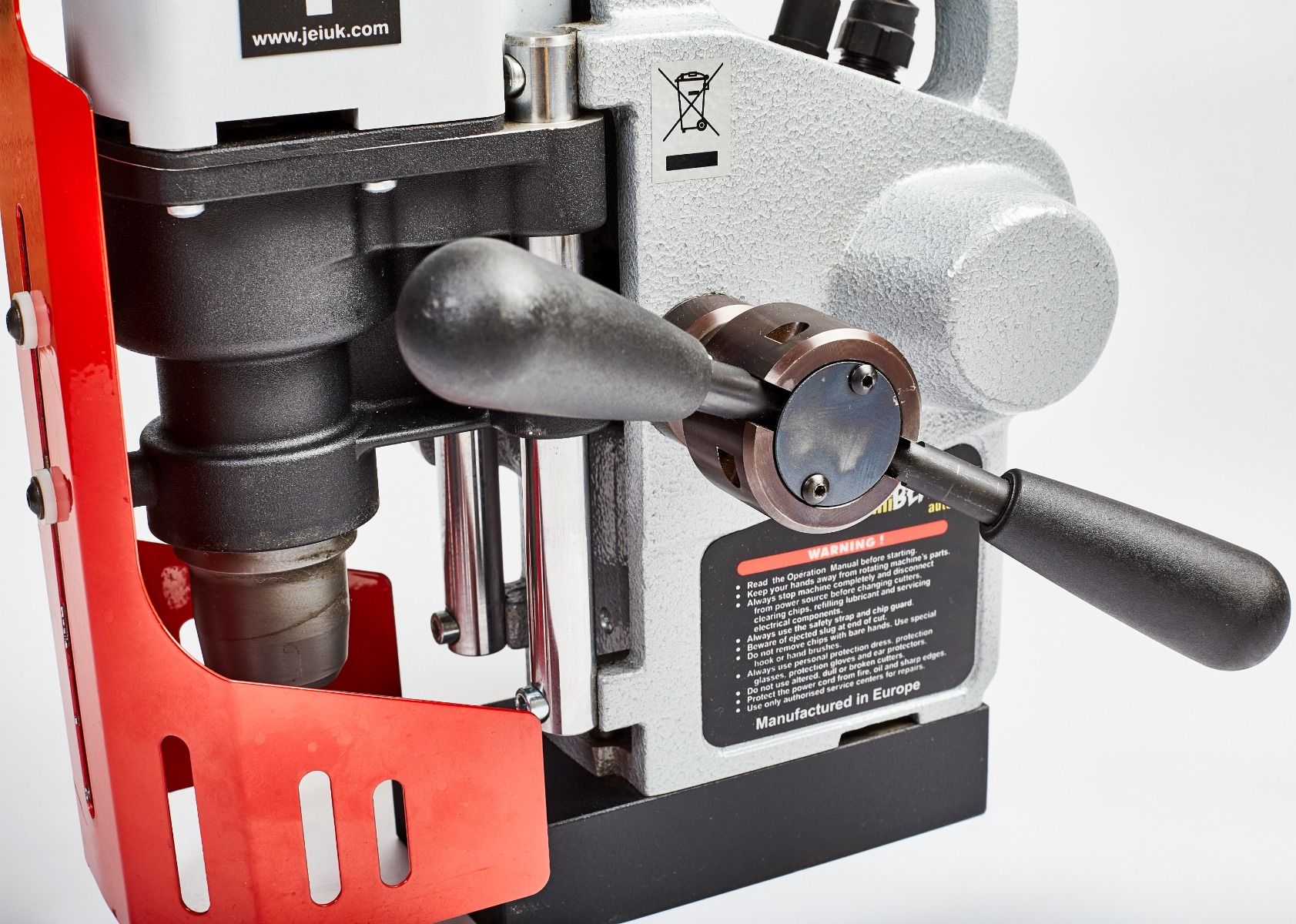

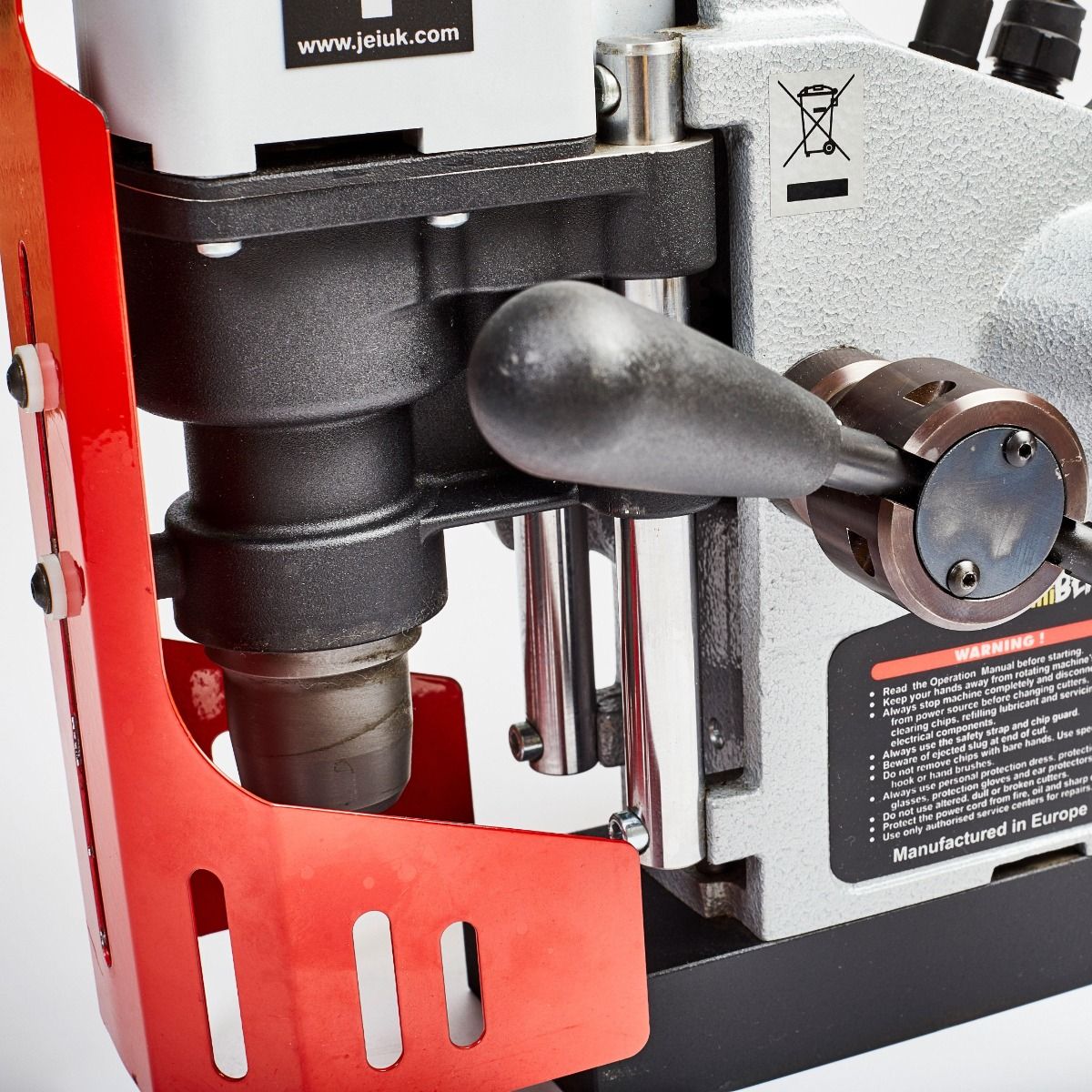

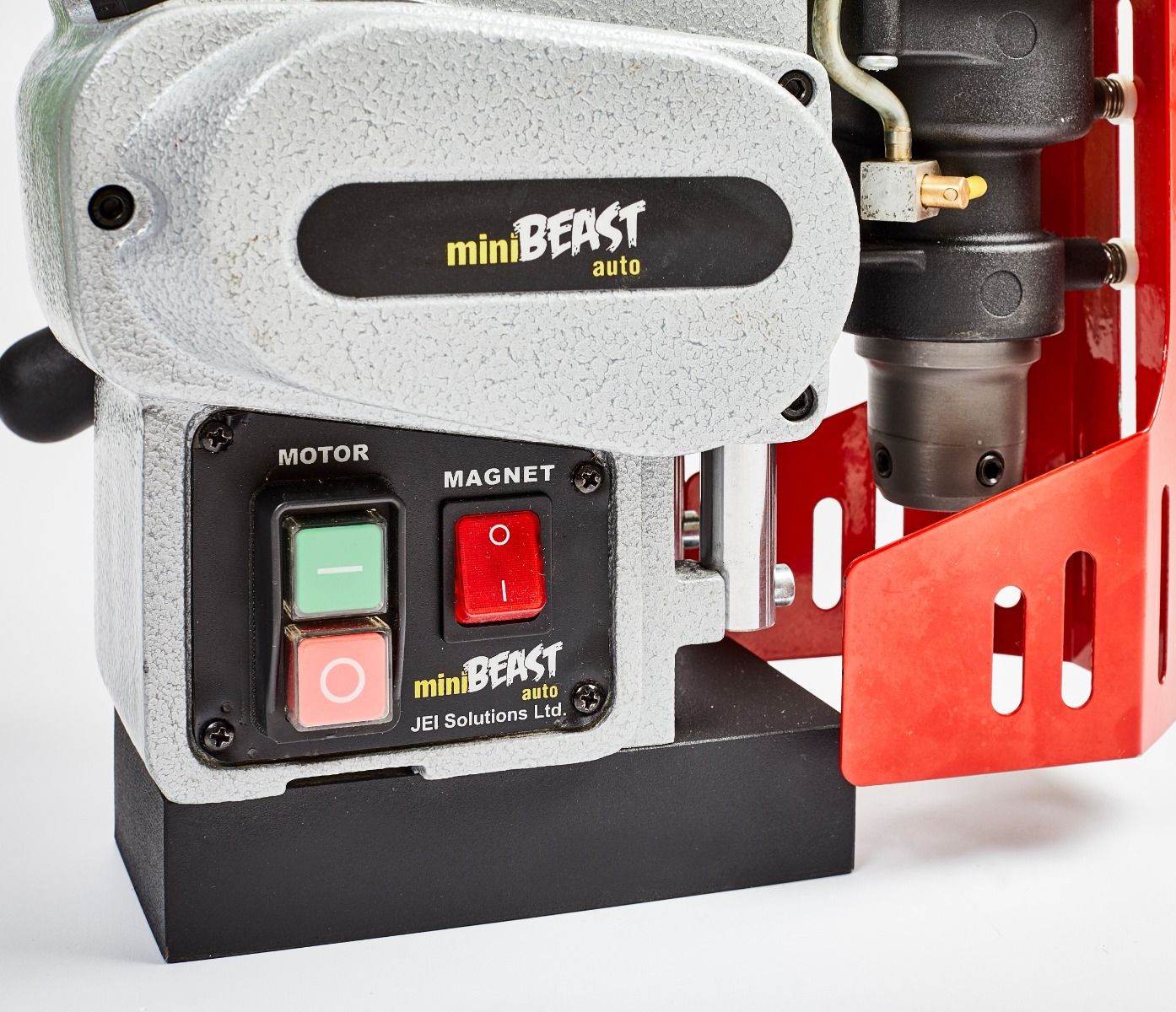

  • Easier operation – lets the machine control the task.
  • Increased productivity – one operator can control several machines at one time.
  • Improved tool life – let the machine do the cutting. More holes per tool with better hole results.
  • Protects against misuse of machine and wearing parts – no manual overloading of the motor.
  • Longer overall life of the machine.
In stock
Only %1 left
SKU
MiniBeast™ Auto


The MiniBeast™ Auto is ideal for high production environments, cutting more holes in less time. Easy, maintenance-free operation means this can control the task for greater productivity.

MiniBeast™ Auto SPECIFICATIONS


Model MiniBeast™ Auto
Weight 13kg
Cutter Capacity 35 mm Ø x 2" depth of cut

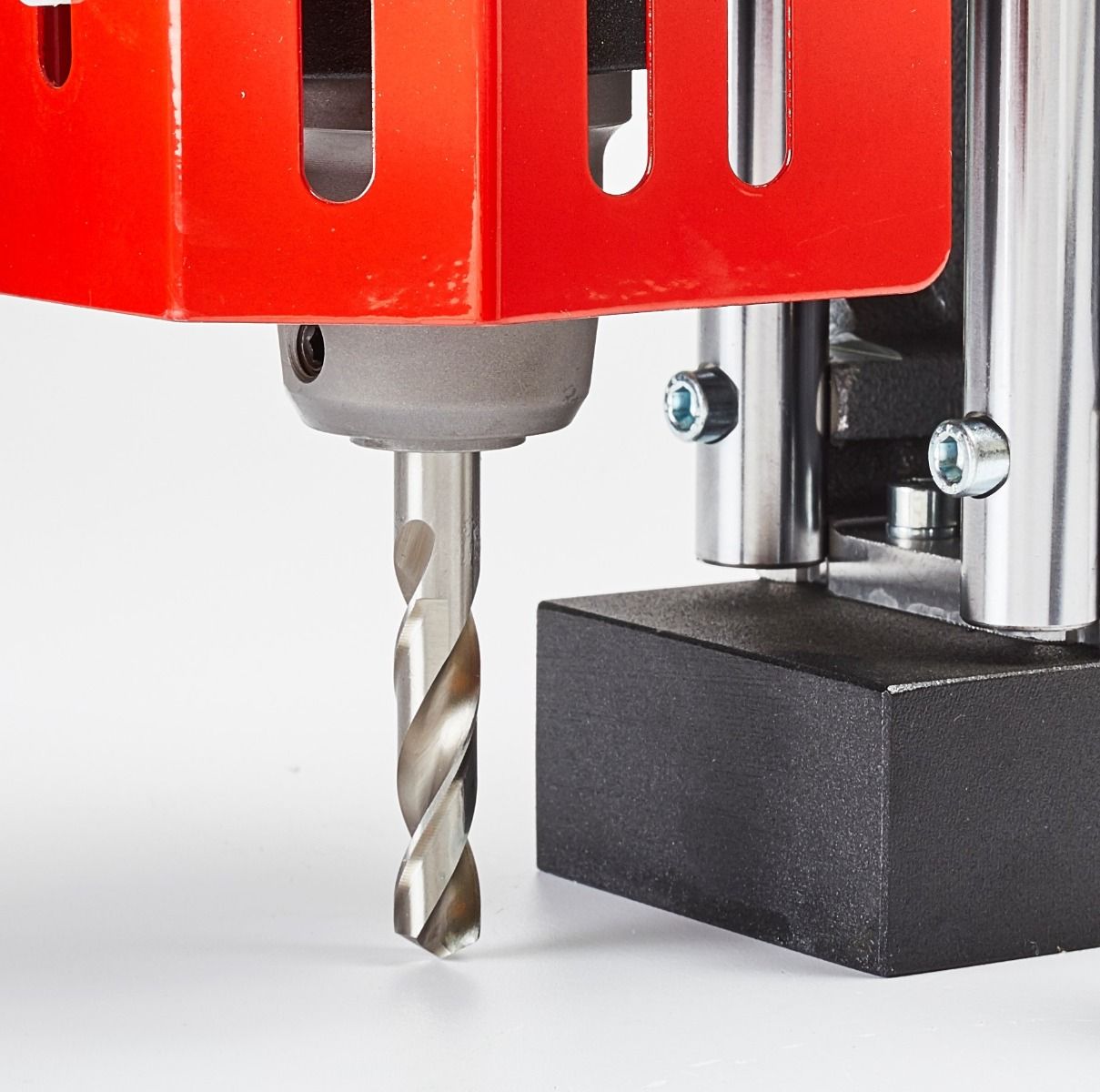

Twist Drill Capacity 12 mm Ø with optional twist drills
Countersink Capacity 30 mm
Tapping Capacity N/A
Reaming Capacity N/A
Spindle 19 mm
Motor 1010 W
RPM No load 520 RPM, loaded 350 RPM
No of Geared Speeds 1 Fixed Speed
Height Min/Max 307 / 377
Length / Width 285 mm / 221mm
Magnetic Base Dimensions 160 mm x 80 mm
Magnet Deadlift 980 kg on 1" Plate (9600 N)
Noise Level < 90dB
Vibration Level < 2.5 m/s2
Shipping Weight 19.10 kg
Shipping Dimensions 35cm x 36cm x 26cm
Voltage / Part No. DRILL-19041A (110V) / DRILL-19042A (220V)
